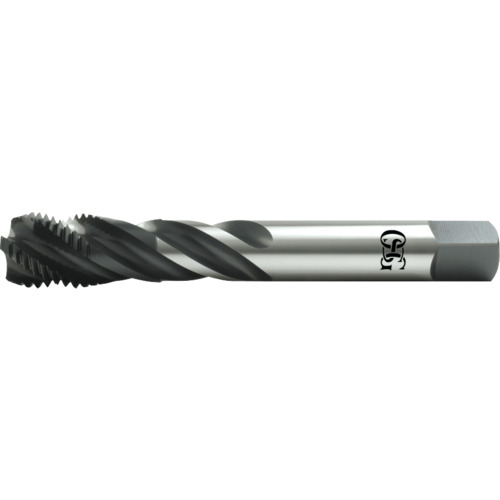

M16 2.00 Dia-D17-HSSE-Steam Oxide-Spiral Flute Tap
Spiral Flute Tap; M16 × 2 mm ; 110 mm OAL ; 4 FL ; HSSCo ; Black Oxide ; D17 ; Series 13117
| Thread Diameter Size (TDZ) | M16 | Tool Type | High Performance Tap |
| Thread Pitch (TP) | 2 mm | Chamfer | 2.5P-3P |
| Thread Standard | Metric | Coating | Black Oxide |
| Overall Length (OAL) | 110 mm | Flute Type | Spiral |
| Thread Cutting Part Length (THL) | 1-13/16″ | End Shape | Chamfer |
| Usable Length (LU) | 16 mm | Style | Spiral Flute |
| Connection Diameter Machine Side (DCONMS) | 12.19 mm | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 4 | Measurement Type | Metric |
| Cutting Edge Material | HSSCo | ToolTypeName | Thread Forming Taps |
| Thread Tolerance Class (TCTR) | D17 | Series/List # | 13117 |
Product Features
| Remarks | •Premium Vanadium High Speed Steel •For Vertical Application •DIN Overall Length •Steam Oxide Coating •Modified Bottom Chamfer •Recommended for Cast Iron, Carbon Steels, Alloy Steels and Hardened Steels up to 35 HrC | Country of Origin | Japan |
Shipping Info
Package Weight
0.4
