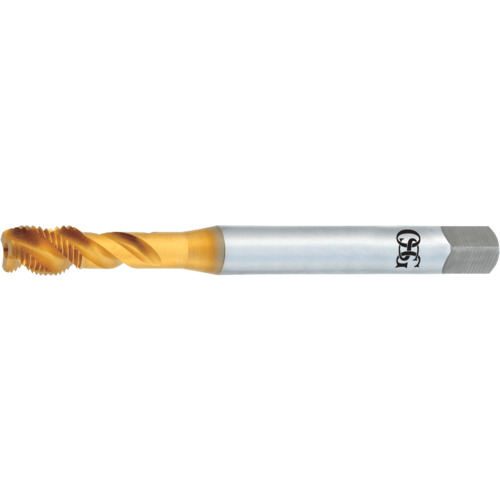

M14 2.00 Dia-6H-3 FL-HSS-TiN-Modified Bottom Spiral Flute Tap
Spiral Flute Tap; M14 × 2 mm ; 110 mm OAL ; 3 FL ; HSS ; TiN ; 6H ; Series 239
| Thread Diameter Size (TDZ) | M14 | Special Feature | DIN Length / Coolant Thru |
| Thread Pitch (TP) | 2 mm | Tool Type | High Performance Tap |
| Thread Standard | Metric | Chamfer | 2.5P-3P |
| Overall Length (OAL) | 110 mm | Coating | TiN |
| Thread Cutting Part Length (THL) | 1-21/32″ | Flute Type | Spiral |
| Usable Length (LU) | 50 mm | End Shape | Chamfer |
| Connection Diameter Machine Side (DCONMS) | 10.89 mm | Style | Modified Bottoming |
| Flute Count (NOF) | 3 | Measurement Type | Metric |
| Cutting Edge Material | HSS | ToolTypeName | Spiral Flute Taps |
| Thread Tolerance Class (TCTR) | 6H | Series/List # | 239 |
Product Features
| Remarks | •HY-PRO DIN Spiral Fluted Taps •Designed for tapping hardened steel such as 4140, 4340, H–13, D–2 and 1055 up to 35 HRC as well as a variety of stainless steel. TiN surface treatment and coolant through capability enables high speed tapping. Recommended for use with a synchronized spindle. •DIN Overall length •Coolant thru •Modified bottom | Country of Origin | Japan |
Shipping Info
Package Length
5.05000
Package Width
.85000
Package Height
.85000
Package Weight
0.16
