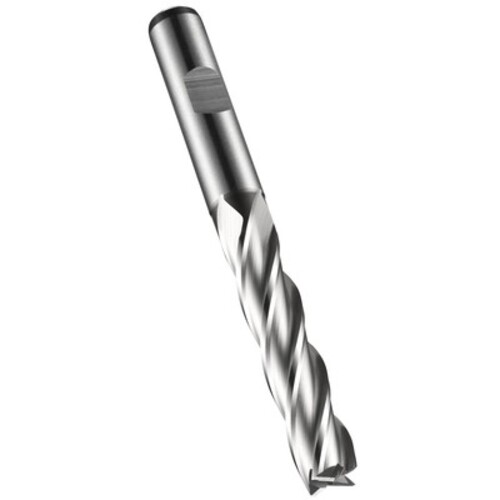

5.50 MM Dormer HSS-E-PM Bright DIN 1835 B Shank End Mill N DIN 844 L E-code # C2735.5
SQ End Mill; 5.5 mm Dia. × 24 mm LOC × 6 mm Shank Dia. × 68 mm OAL ; 4 FL ; HSS-E-PM ; Bright ; Series C273
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 5.5 mm | Shank Type | Weldon |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Applicable Material | | Steel | Cast Iron | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | |
| Depth of Cut Maximum (APMX) | 24 mm | Application | Shank Cutter Finishing |
| Overall Length (OAL) | 68 mm | Head Length (LH) | 24 mm |
| Cutting Edge Material | HSS-E-PM | Length Group | Long |
| Coating | Bright | Shank Standard | DIN 1835 B |
| Flute Count (NOF) | 4 | Body Material | HSS-E-PM Material |
| Flute Helix Angle (FHA) | 30 Degrees | Series/List # | C273 |
Product Features
| Family Description | E-code # C2735.5 | Country of Origin | Czech Rep. |
Shipping Info
Package Weight
0.532
