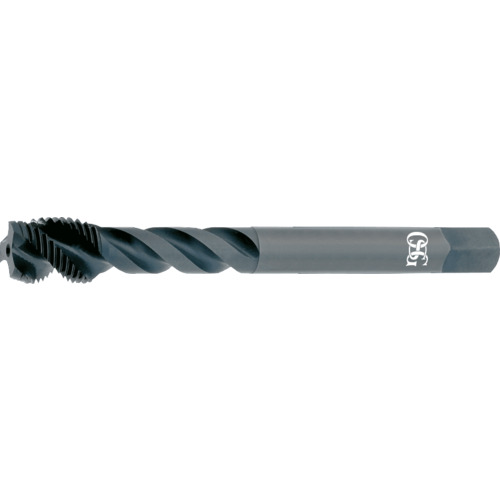

M18 2.50 Dia-6H-4 FL-HSS DIN-Modified Bottoming Spiral Flute Tap
Spiral Flute Tap; M18 × 2.5 mm ; 125 mm OAL ; 4 FL ; HSS ; Black Oxide ; 6H ; Series 229
| Thread Diameter Size (TDZ) | M18 | Thread Tolerance Class (TCTR) | 6H |
| Thread Pitch (TP) | 2.5 mm | Tool Type | High Performance Tap |
| Thread Standard | Metric | Chamfer | 2.5P-3P |
| Overall Length (OAL) | 125 mm | Coating | Black Oxide |
| Thread Cutting Part Length (THL) | 1-13/16″ | Flute Type | Spiral |
| Usable Length (LU) | 2.165″ | Style | Modified Bottoming |
| Connection Diameter Machine Side (DCONMS) | 0.542″ | Measurement Type | Metric |
| Flute Count (NOF) | 4 | ToolTypeName | Spiral Flute Taps |
| Cutting Edge Material | HSS | Series/List # | 229 |
Product Features
| Remarks | •HY-PRO DIN Spiral Flute Taps •Steam Oxide •DIN overall lengths, Modified Bottoming (2.5P–3P) | Country of Origin | Brazil |
Shipping Info
Package Length
5.05000
Package Width
1.00000
Package Height
.90000
Package Weight
0.3
