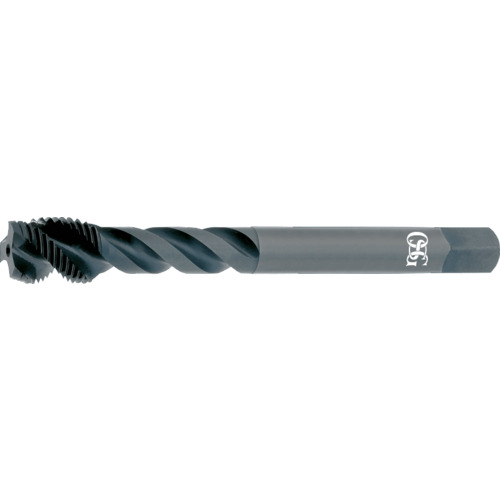

1/4-28 Dia-2B-3 FL-HSS DIN-Modified Bottoming Spiral Flute Tap
Spiral Flute Tap; 1/4″ - 28 ; 80 mm OAL ; 3 FL ; HSS ; Black Oxide ; 2B ; Series 220
| Thread Diameter Size (TDZ) | 1/4″ | Thread Tolerance Class (TCTR) | 2B |
| Threads per Inch (TPI) | 28 | Tool Type | High Performance Tap |
| Thread Standard | NF | Chamfer | 2.5P-3P |
| Overall Length (OAL) | 80 mm | Coating | Black Oxide |
| Thread Cutting Part Length (THL) | 1″ | Flute Type | Spiral |
| Usable Length (LU) | 1.177″ | Style | Modified Bottoming |
| Connection Diameter Machine Side (DCONMS) | 0.255″ | Measurement Type | Inch |
| Flute Count (NOF) | 3 | ToolTypeName | Spiral Flute Taps |
| Cutting Edge Material | HSS | Series/List # | 220 |
Product Features
| Remarks | •HY-PRO DIN Spiral Flute Taps •Steam Oxide •DIN overall lengths, Modified Bottoming (2.5P–3P) | Country of Origin | Brazil |
Shipping Info
Package Length
4.40000
Package Width
.40000
Package Height
.35000
Package Weight
0.04
