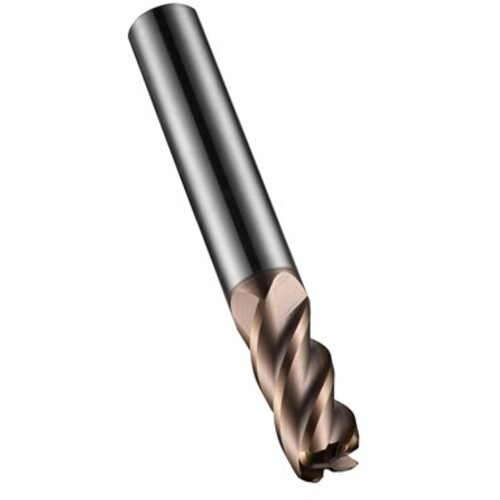

1.50 MM 0.2 MM Dormer HM TiSiN DIN 6535 HA Shank Corner Radius End Mill N DORMER E-code # S5231.5XR0.2
SQ End Mill; 1.5 mm Dia. × 4.5 mm LOC × 6 mm Shank Dia. × 50 mm OAL ; 0.2 mm RE ; 4 FL ; Carbide ; TiSiN ; Series C247
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 1.5 mm | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Applicable Material | | Hard Materials | |
| Depth of Cut Maximum (APMX) | 4.5 mm | Application | Shank Cutter Corner Radius |
| Overall Length (OAL) | 50 mm | Corner Radius (RE) | 0.2 mm |
| Cutting Edge Material | Carbide | Head Length (LH) | 4.5 mm |
| Coating | TiSiN | Length Group | Short|Stub |
| Flute Count (NOF) | 4 | Shank Standard | DIN 6535 HA |
| Flute Helix Angle (FHA) | 40 Degrees | Body Material | HM Material |
| Shank Type | Round | Series/List # | C247 |
Product Features
| Family Description | E-code # S5231.5XR0.2 | Country of Origin | Malaysia |
Shipping Info
Package Weight
0.791
