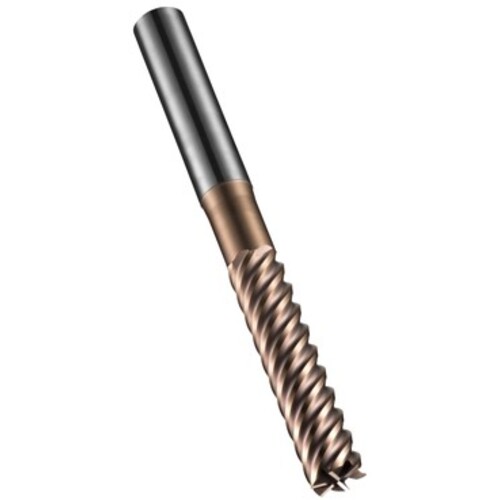

12.00 MM Dormer HM TiSiN DIN 6535 HA Shank Finishing End Mill N DORMER E-code # S52612.0
SQ End Mill; 12 mm Dia. × 50 mm LOC × 12 mm Shank Dia. × 100 mm OAL ; 6 FL ; Carbide ; TiSiN ; Series S767
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 12 mm | Applicable Material | | Hard Materials | |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Application | Shank Cutter Finishing |
| Depth of Cut Maximum (APMX) | 50 mm | Head Length (LH) | 50 mm |
| Overall Length (OAL) | 100 mm | Neck Length (LN) | 60 mm |
| Cutting Edge Material | Carbide | Length Group | Long |
| Coating | TiSiN | Shank Standard | DIN 6535 HA |
| Flute Count (NOF) | 6 | Body Material | HM Material |
| Flute Helix Angle (FHA) | 50 Degrees | Decimal Equivalent | 0.4724″ |
| Shank Type | Round | Series/List # | S767 |
| Usable Length (LU) | 60 mm |
Product Features
| Family Description | E-code # S52612.0 | Country of Origin | Malaysia |
Shipping Info
Package Weight
5.075
