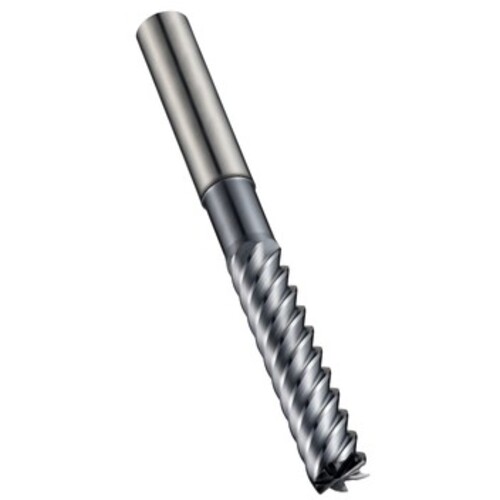

16.00 MM Dormer HM AlTiN DIN 6535 HA Shank Finishing End Mill N DORMER E-code # S22616.0
SQ End Mill; 16 mm Dia. × 57 mm LOC × 16 mm Shank Dia. × 125 mm OAL ; 8 FL ; Carbide ; AlTiN ; Series S403HA
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 16 mm | Applicable Material | | Hard Materials | Super-Alloys / Titanium | |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Application | Shank Cutter Finishing |
| Depth of Cut Maximum (APMX) | 57 mm | Head Length (LH) | 57 mm |
| Overall Length (OAL) | 125 mm | Neck Length (LN) | 85 mm |
| Cutting Edge Material | Carbide | Length Group | Long |
| Coating | AlTiN | Shank Standard | DIN 6535 HA |
| Flute Count (NOF) | 8 | Body Material | HM Material |
| Flute Helix Angle (FHA) | 50 Degrees | Decimal Equivalent | 0.6299″ |
| Shank Type | Round | Series/List # | S403HA |
| Usable Length (LU) | 85 mm |
Product Features
| Family Description | E-code # S22616.0 | Country of Origin | Malaysia |
Shipping Info
Package Weight
11.06
