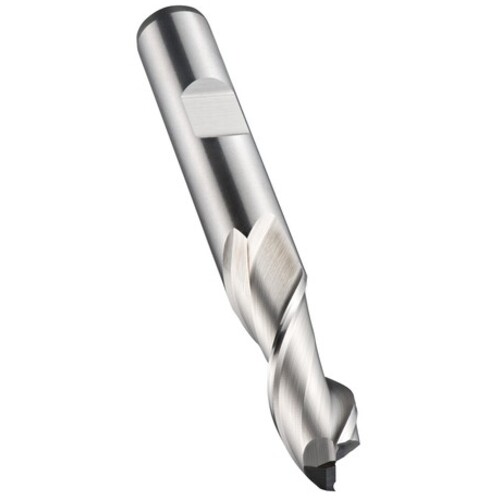

18.00 MM Dormer HSS-E Bright DIN 1835 B Shank Slot Drill W DIN 844 K E-code # C15918.0
SQ End Mill; 18 mm Dia. × 43.5 mm LOC × 16 mm Shank Dia. × 92 mm OAL ; 2 FL ; HSSCo ; Uncoated ; Series S218
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 18 mm | Applicable Material | | Steel | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Application | Shank Cutter Slotting |
| Depth of Cut Maximum (APMX) | 43.5 mm | Head Length (LH) | 32 mm |
| Overall Length (OAL) | 92 mm | Neck Length (LN) | 43.5 mm |
| Cutting Edge Material | HSSCo | Length Group | Short|Stub |
| Coating | Uncoated | Shank Standard | DIN 1835 B |
| Flute Count (NOF) | 2 | Body Material | HSS-E (cobalt high speed steel) Material |
| Flute Helix Angle (FHA) | 40 Degrees | Decimal Equivalent | 0.7087″ |
| Shank Type | Weldon | Series/List # | S218 |
Product Features
| Family Description | E-code # C15918.0 | Country of Origin | Poland |
Shipping Info
Package Weight
2.8
