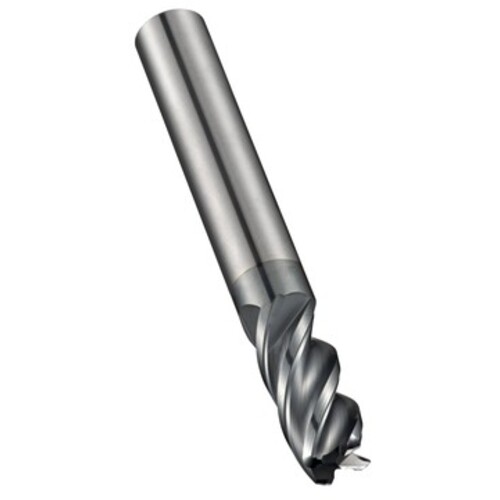

18.00 MM 2.0 MM Dormer HM AlCrN DIN 6535 HA Shank Corner Radius End Mill N DORMER E-code # S26218.0XR2.0
SQ End Mill; 18 mm Dia. × 38 mm LOC × 18 mm Shank Dia. × 92 mm OAL ; 2 mm RE ; 4 FL ; Carbide ; AlCrN ; Series S524
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 18 mm | Applicable Material | | Hard Materials | Super-Alloys / Titanium | |
| Connection Diameter Machine Side (DCONMS) | 18 mm | Application | Shank Cutter Corner Radius |
| Depth of Cut Maximum (APMX) | 38 mm | Corner Radius (RE) | 2 mm |
| Overall Length (OAL) | 92 mm | Head Length (LH) | 38 mm |
| Cutting Edge Material | Carbide | Length Group | Short|Stub |
| Coating | AlCrN | Shank Standard | DIN 6535 HA |
| Flute Count (NOF) | 4 | Body Material | HM Material |
| Flute Helix Angle (FHA) | 40 Degrees | Decimal Equivalent | 0.7087″ |
| Shank Type | Round | Series/List # | S524 |
| End Shape | Corner Radius |
Product Features
| Family Description | E-code # S26218.0XR2.0 | Country of Origin | Malaysia |
Shipping Info
Package Weight
9.87
