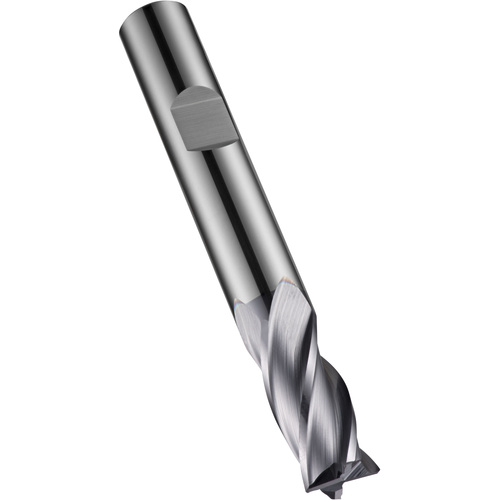

9.00 MM Dormer HM TiAlN DIN 6535 HB Shank End Mill N E-code # S9449.0
SQ End Mill; 9 mm Dia. × 21 mm LOC × 10 mm Shank Dia. × 72 mm OAL ; 4 FL ; Carbide ; AlTiN ; Series S527
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 9 mm | Applicable Material | | Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Application | Shank Cutter Finishing |
| Depth of Cut Maximum (APMX) | 21 mm | Head Length (LH) | 21 mm |
| Overall Length (OAL) | 72 mm | Length Group | Medium |
| Cutting Edge Material | Carbide | Shank Standard | DIN 6535 HB |
| Coating | AlTiN | Body Material | HM Material |
| Flute Count (NOF) | 4 | Decimal Equivalent | 0.3543″ |
| Flute Helix Angle (FHA) | 30 Degrees | Series/List # | S527 |
| Shank Type | Weldon |
Product Features
| Family Description | E-code # S9449.0 | Country of Origin | Brazil |
Shipping Info
Package Weight
2.555
