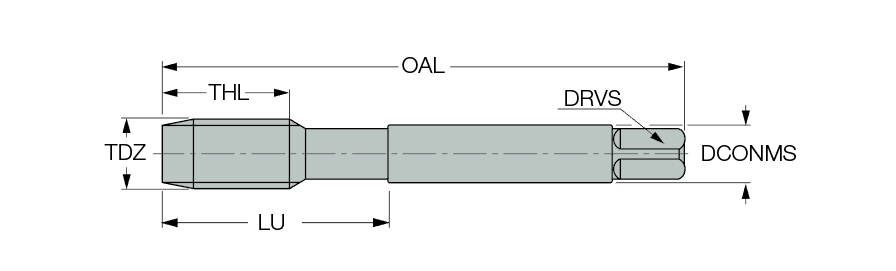

TPS M-10X1.5-W HS
| Thread Diameter Size (TDZ) | M10 | Thread Tolerance Class (TCTR) | D6 |
| Thread Pitch (TP) | 1.5 mm | Tool Type | High Performance Tap |
| Thread Standard | THFT | | Chamfer | 2.5P-3P |
| Overall Length (OAL) | 3.937″ | Coating | Black Oxide |
| Thread Cutting Part Length (THL) | 0.591″ | Flute Type | Spiral |
| Usable Length (LU) | 1.54″ | Style | Modified Bottoming |
| Connection Diameter Machine Side (DCONMS) | 0.394″ | Measurement Type | Inch |
| Flute Count (NOF) | 3 | Grade | HS |
| Flute Helix Angle (FHA) | 20 Degrees | Series/List # | 299 |
| Cutting Edge Material | HSS |
Product Features
| Family Description | HSS (M2) right-hand 40° spiral flute machine taps according to DIN 13 for ISO metric coarse threads on steel with good machinability. | Country of Origin | Israel |
Shipping Info
Package Weight
0.117
