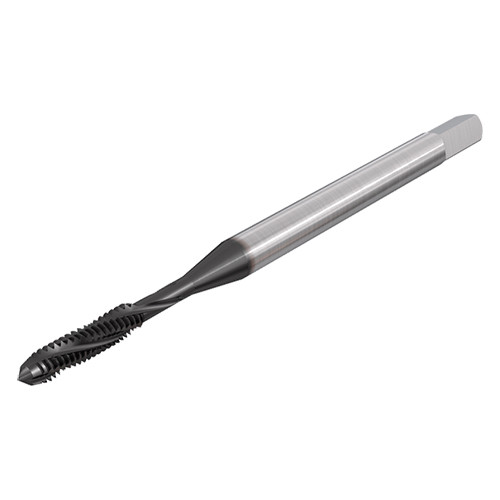

TPS M-4.5X0.75-W HS
| Thread Diameter Size (TDZ) | M4.5 | Chamfer | 2.5P-3P |
| Thread Pitch (TP) | 0.75 mm | Flute Type | Spiral |
| Thread Standard | THFT | | Style | Modified Bottoming |
| Overall Length (OAL) | 2.756″ | Measurement Type | Inch |
| Thread Cutting Part Length (THL) | 0.315″ | Grade | HS |
| Usable Length (LU) | 0.98″ | Thread Form Type (THFT) | M60 |
| Connection Diameter Machine Side (DCONMS) | 0.236″ | Series/List # | 299 |
| Flute Count (NOF) | 3 | Application | | Deep Hole with Short Thread | Taps for Short Blind Hole | |
| Flute Helix Angle (FHA) | 20 Degrees | Body Material | HSS |
| Cutting Edge Material | HSS | Drive Size (DRVS) | 0.193″ |
| Thread Tolerance Class (TCTR) | D6 | Thread Size | M4.5 × 0.75 |
Product Features
| Family Description | HSS (M2) right-hand 40° spiral flute machine taps according to DIN 13 for ISO metric coarse threads on steel with good machinability. | Country of Origin | Korea |
Shipping Info
Package Weight
0.029
