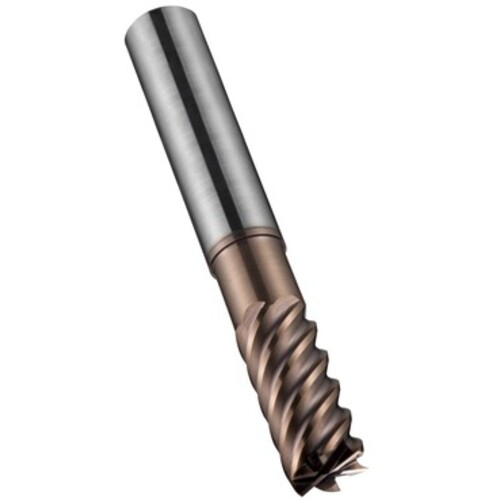

8.00 MM Dormer HM TiSiN DIN 6535 HA Shank Finishing End Mill N DORMER E-code # S5258.0
SQ End Mill; 8 mm Dia. × 20 mm LOC × 8 mm Shank Dia. × 64 mm OAL ; 6 FL ; Carbide ; TiSiN ; Series S813HB
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 8 mm | Applicable Material | | Hard Materials | |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Application | Shank Cutter Finishing |
| Depth of Cut Maximum (APMX) | 20 mm | Head Length (LH) | 20 mm |
| Overall Length (OAL) | 64 mm | Neck Length (LN) | 30 mm |
| Cutting Edge Material | Carbide | Length Group | Short|Stub |
| Coating | TiSiN | Shank Standard | DIN 6535 HA |
| Flute Count (NOF) | 6 | Body Material | HM Material |
| Flute Helix Angle (FHA) | 50 Degrees | Decimal Equivalent | 0.315″ |
| Shank Type | Round | Series/List # | S813HB |
| Usable Length (LU) | 30 mm |
Product Features
| Family Description | E-code # S5258.0 | Country of Origin | Malaysia |
Shipping Info
Package Weight
1.68
