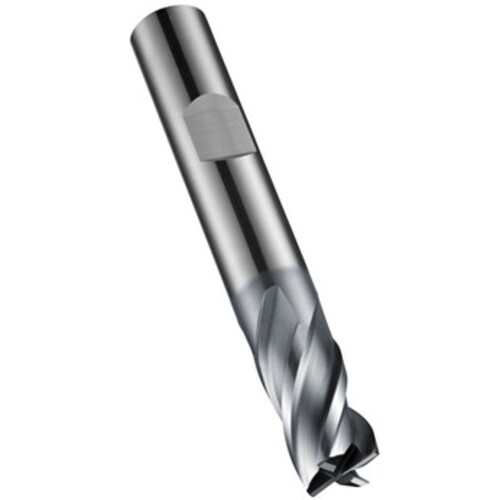

6.00 MM Dormer HM ALCRONA DIN 6535 HB Shank End Mill N DIN 6527 K E-code # S804HB6.0
SQ End Mill; 6 mm Dia. × 10 mm LOC × 6 mm Shank Dia. × 54 mm OAL ; 4 FL ; Carbide ; AlCrN ; Series S262
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 6 mm | Applicable Material | | Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Application | Shank Cutter Finishing |
| Depth of Cut Maximum (APMX) | 10 mm | Head Length (LH) | 10 mm |
| Overall Length (OAL) | 54 mm | Length Group | Extra Short |
| Cutting Edge Material | Carbide | Shank Standard | DIN 6527 K |
| Coating | AlCrN | Body Material | HM Material |
| Flute Count (NOF) | 4 | Decimal Equivalent | 0.2362″ |
| Flute Helix Angle (FHA) | 35 Degrees | Series/List # | S262 |
| Shank Type | Weldon |
Product Features
| Family Description | E-code # S804HB6.0 | Country of Origin | Italy |
Shipping Info
Package Weight
0.931
