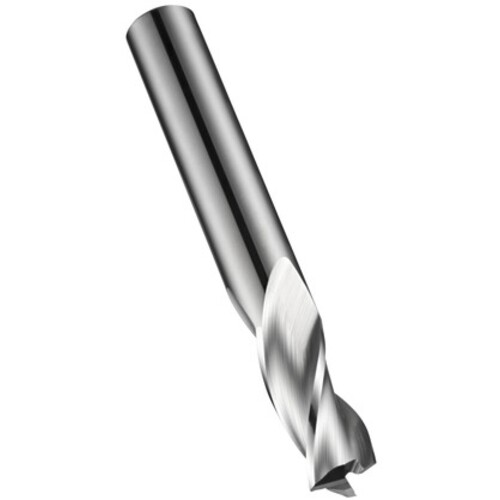

6.00 MM Dormer HM Bright DIN 6535 HA Shank End Mill N E-code # S9036.0
SQ End Mill; 6 mm Dia. × 19 mm LOC × 6 mm Shank Dia. × 57 mm OAL ; 3 FL ; Carbide ; Uncoated ; Series S933
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 6 mm | Applicable Material | | Steel | Cast Iron | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Application | Shank Cutter Slotting |
| Depth of Cut Maximum (APMX) | 19 mm | Head Length (LH) | 19 mm |
| Overall Length (OAL) | 57 mm | Length Group | Medium |
| Cutting Edge Material | Carbide | Shank Standard | DIN 6535 HA |
| Coating | Uncoated | Body Material | HM Material |
| Flute Count (NOF) | 3 | Decimal Equivalent | 0.2362″ |
| Flute Helix Angle (FHA) | 30 Degrees | Series/List # | S933 |
| Shank Type | Round |
Product Features
| Family Description | E-code # S9036.0 | Country of Origin | Brazil |
Shipping Info
Package Weight
0.882
