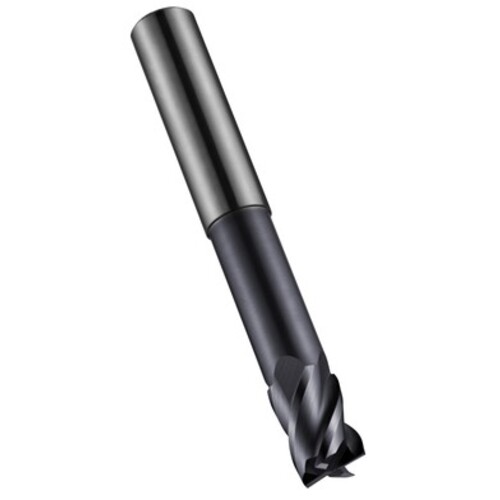

4.00 MM Dormer HM AlTiN DIN 6535 HA Shank End Mill N DORMER E-code # S2194.0
SQ End Mill; 4 mm Dia. × 8 mm LOC × 4 mm Shank Dia. × 60 mm OAL ; 4 FL ; Carbide ; AlTiN ; Series S526
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 4 mm | Applicable Material | | Hard Materials | Super-Alloys / Titanium | |
| Connection Diameter Machine Side (DCONMS) | 4 mm | Application | Shank Cutter Finishing |
| Depth of Cut Maximum (APMX) | 8 mm | Head Length (LH) | 8 mm |
| Overall Length (OAL) | 60 mm | Neck Length (LN) | 32 mm |
| Cutting Edge Material | Carbide | Length Group | Extra Short |
| Coating | AlTiN | Shank Standard | DIN 6535 HA |
| Flute Count (NOF) | 4 | Body Material | HM Material |
| Flute Helix Angle (FHA) | 40 Degrees | Decimal Equivalent | 0.1575″ |
| Shank Type | Round | Series/List # | S526 |
| Usable Length (LU) | 32 mm |
Product Features
| Family Description | E-code # S2194.0 | Country of Origin | Malaysia |
Shipping Info
Package Weight
0.441
