TPS M-5X0.8-W HS
Spiral Flute Tap; M5 × 0.8 mm ; 70 mm OAL ; 3 FL ; HSS ; D6 ; Series 299

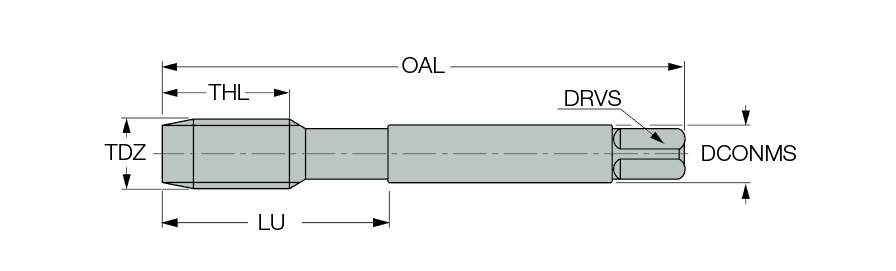

| Thread Diameter Size (TDZ) | M5 | Chamfer | 2.5P-3P |
| Thread Pitch (TP) | 0.8 mm | Flute Type | Spiral |
| Thread Standard | THFT | | Style | Modified Bottoming |
| Overall Length (OAL) | 70 mm | Measurement Type | Metric |
| Thread Cutting Part Length (THL) | 8 mm | Grade | HS |
| Usable Length (LU) | 25 mm | Thread Form Type (THFT) | M60 |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Series/List # | 299 |
| Flute Count (NOF) | 3 | Application | | Deep Hole with Short Thread | Taps for Short Blind Hole | |
| Flute Helix Angle (FHA) | 20 Degrees | Body Material | HSS |
| Cutting Edge Material | HSS | Drive Size (DRVS) | 4.9 mm |
| Thread Tolerance Class (TCTR) | D6 | Thread Size | M5 × 0.8 |
Product Features
| Family Description | HSS (M2) right-hand 40° spiral flute machine taps according to DIN 13 for ISO metric coarse threads on steel with good machinability. | Country of Origin | S.Korea |
| Remarks | The material designation HE was recently changed to HEST. HEST and HE are identical products and therefore you may still encounter HE designated items. |
Shipping Info
Package Weight
0.028
