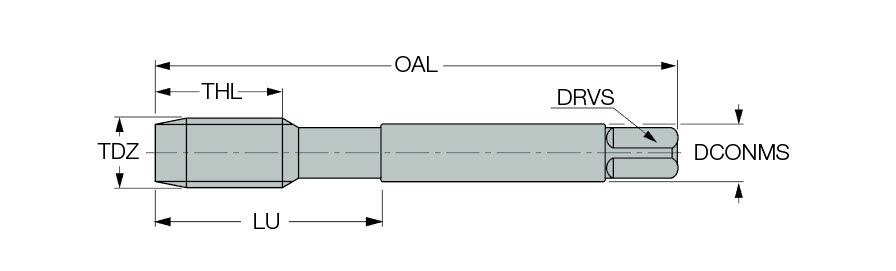

TPS M-14X2.0-W HE
| Thread Diameter Size (TDZ) | M14 | Thread Tolerance Class (TCTR) | D6 |
| Thread Pitch (TP) | 2 mm | Tool Type | High Performance Tap |
| Thread Standard | THFT | | Chamfer | 2.5P-3P |
| Overall Length (OAL) | 4.331″ | Coating | Uncoated |
| Thread Cutting Part Length (THL) | 0.787″ | Flute Type | Spiral |
| Usable Length (LU) | 1.73″ | Style | Modified Bottoming |
| Connection Diameter Machine Side (DCONMS) | 0.433″ | Measurement Type | Inch |
| Flute Count (NOF) | 3 | Grade | HE |
| Flute Helix Angle (FHA) | 40 Degrees | Series/List # | 299 |
| Cutting Edge Material | HSS |
Product Features
| Family Description | HSS-E 5% Co right-hand 40° spiral flute machine taps according to DIN 13 for ISO metric coarse threads on steel with good machinability. | Country of Origin | Israel |
Shipping Info
Package Weight
0.172
