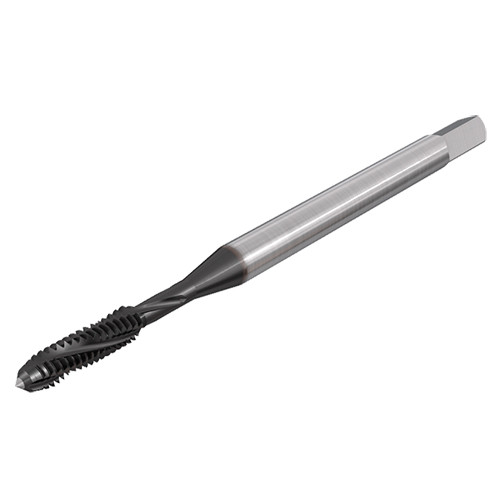

TPS M-9X1.25-W HE
| Thread Diameter Size (TDZ) | M9 | Chamfer | 2.5P-3P |
| Thread Pitch (TP) | 1.25 mm | Coating | Uncoated |
| Thread Standard | THFT | | Flute Type | Spiral |
| Overall Length (OAL) | 3.543″ | Style | Modified Bottoming |
| Thread Cutting Part Length (THL) | 0.512″ | Measurement Type | Inch |
| Usable Length (LU) | 1.38″ | Grade | HE |
| Connection Diameter Machine Side (DCONMS) | 0.354″ | Thread Form Type (THFT) | M60 |
| Flute Count (NOF) | 3 | Series/List # | 299 |
| Flute Helix Angle (FHA) | 40 Degrees | Application | | Deep Hole with Short Thread | Taps for Deep Blind Hole | Taps for Short Blind Hole | |
| Cutting Edge Material | HSS | Body Material | HSS |
| Thread Tolerance Class (TCTR) | D6 | Thread Size | M9 × 1.25 |
Product Features
| Family Description | HSS-E 5% Co right-hand 40° spiral flute machine taps according to DIN 13 for ISO metric coarse threads on steel with good machinability. | Country of Origin | Korea |
Shipping Info
Package Weight
0.088
