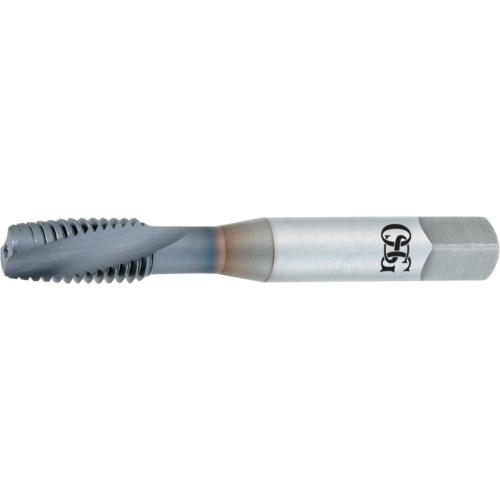

3/8-16 Dia.-2B-2FL - HSSE - TiCN - Plug - Spiral Flute Tap
Spiral Flute Tap; 3/8″ - 16 ; 2-15/16″ OAL ; 2 FL ; HSSCo ; TiCN ; 2B ; Series 13059
| Thread Diameter Size (TDZ) | 3/8″ | Thread Tolerance Class (TCTR) | 2B |
| Threads per Inch (TPI) | 16 | Tool Type | Hand Tap |
| Thread Standard | NC | Chamfer | 4P-4.5P |
| Overall Length (OAL) | 2-15/16″ | Coating | TiCN |
| Thread Cutting Part Length (THL) | 1-1/4″ | Flute Type | Spiral |
| Usable Length (LU) | 1.251″ | Style | Plug |
| Connection Diameter Machine Side (DCONMS) | 0.38″ | Measurement Type | Inch |
| Flute Count (NOF) | 2 | Series/List # | 13059 |
| Cutting Edge Material | HSSCo |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Length
3.65000
Package Width
.55000
Package Height
.55000
Package Weight
0.08
