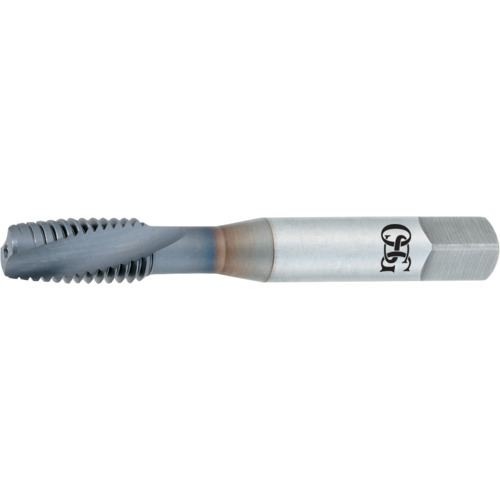

M12 1.75 Dia.-6H-2FL - HSSE - TiCN - Plug - Spiral Flute Tap
Spiral Flute Tap; M12 × 1.75 mm ; 3-3/8″ OAL ; 2 FL ; HSSCo ; TiCN ; 6H ; Series 13159
| Thread Diameter Size (TDZ) | M12 | Thread Tolerance Class (TCTR) | 6H |
| Thread Pitch (TP) | 1.75 mm | Tool Type | Hand Tap |
| Thread Standard | Metric | Chamfer | 4P-4.5P |
| Overall Length (OAL) | 3-3/8″ | Coating | TiCN |
| Thread Cutting Part Length (THL) | 1-21/32″ | Flute Type | Spiral |
| Usable Length (LU) | 49 mm | Style | Plug |
| Connection Diameter Machine Side (DCONMS) | 9.32 mm | Measurement Type | Metric |
| Flute Count (NOF) | 2 | Series/List # | 13159 |
| Cutting Edge Material | HSSCo |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Length
4.95000
Package Width
.70000
Package Height
.70000
Package Weight
.1000
