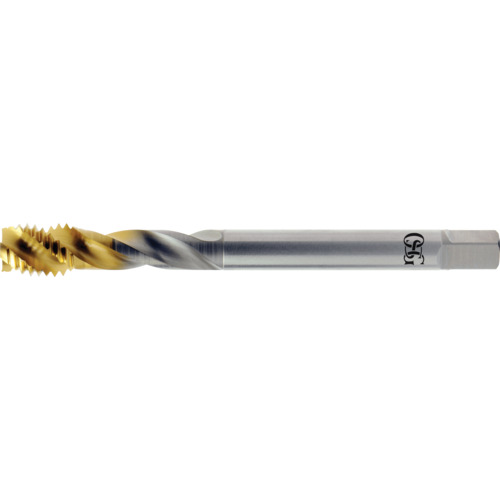

M2.6x0.45 0 Fl D3 HSSE Spiral Fl Tap- TiN
Spiral Flute Tap; M2.6 × 0.45 mm ; 50 mm OAL ; 2 FL ; HSSCo ; TiN ; D3 ; Series 16455
| Thread Diameter Size (TDZ) | M2.6 | Tool Type | Spiral Flute Tap |
| Thread Pitch (TP) | 0.45 mm | Chamfer | 2.5P-3P |
| Thread Standard | Metric | Coating | TiN |
| Overall Length (OAL) | 50 mm | Flute Type | Spiral |
| Thread Cutting Part Length (THL) | 9/16″ | End Shape | Chamfer |
| Usable Length (LU) | 16.3 mm | Style | Spiral Flute |
| Connection Diameter Machine Side (DCONMS) | 3.58 mm | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 2 | Measurement Type | Metric |
| Cutting Edge Material | HSSCo | Series/List # | 16455 |
| Thread Tolerance Class (TCTR) | D3 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Length
2.95000
Package Width
.40000
Package Height
.35000
Package Weight
.0050
