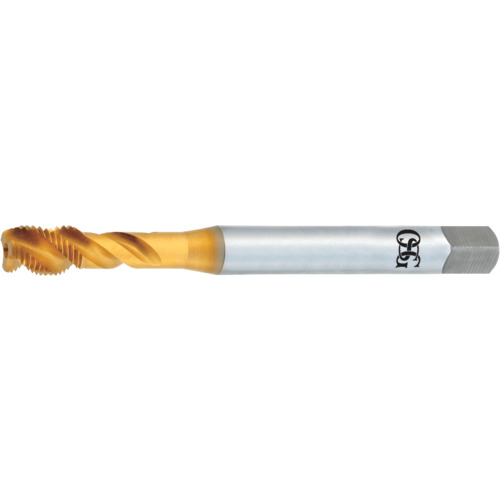

7/8-9 Dia.-2B-4 FL - HSSE - TiN - Modified Bottoming - Spiral Flute Tap
Spiral Flute Tap; 7/8″ - 9 ; 140 mm OAL ; 4 FL ; HSSCo ; TiN ; 2B ; Series 230
| Thread Diameter Size (TDZ) | 7/8″ | Thread Tolerance Class (TCTR) | 2B |
| Threads per Inch (TPI) | 9 | Special Feature | DIN Length / Coolant Thru |
| Thread Standard | NC | Tool Type | High Performance Tap |
| Overall Length (OAL) | 140 mm | Chamfer | 2.5P-3P |
| Thread Cutting Part Length (THL) | 2-7/32″ | Coating | TiN |
| Usable Length (LU) | 2.654″ | Flute Type | Spiral |
| Connection Diameter Machine Side (DCONMS) | 0.697″ | Style | Modified Bottoming |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
| Cutting Edge Material | HSSCo | Series/List # | 230 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Length
5.00000
Package Width
1.15000
Package Height
1.05000
Package Weight
0.44
