8-36 H2 2FL SP FL A TAP TICN

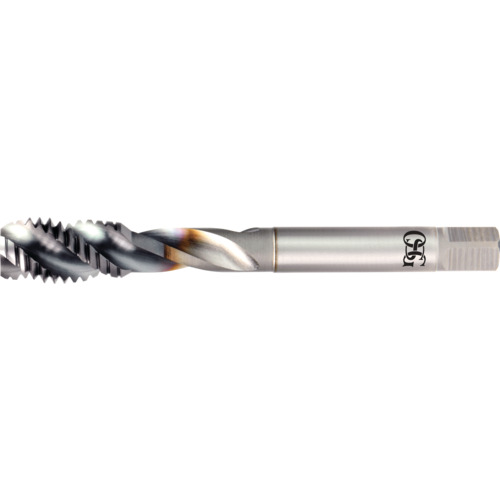

Spiral Flute Tap; #8 - 36 ; 2.48″ OAL ; 2 FL ; HSS-PM ; Vanadium ; H2 ; Series 16505
| Thread Diameter Size (TDZ) | #8 | Thread Tolerance Class (TCTR) | H2 |
| Threads per Inch (TPI) | 36 | Tool Type | High Performance Tap |
| Thread Standard | NF | Chamfer | 2.5P |
| Overall Length (OAL) | 2.48″ | Coating | Vanadium |
| Thread Cutting Part Length (THL) | 0.251″ | Flute Type | Spiral |
| Usable Length (LU) | 0.826″ | End Shape | Chamfer |
| Connection Diameter Machine Side (DCONMS) | 0.167″ | Style | Modified Bottoming |
| Flute Count (NOF) | 2 | Measurement Type | Wire Gauge |
| Flute Helix Angle (FHA) | Variable | Series/List # | 16505 |
| Cutting Edge Material | HSS-PM |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Length
2.90000
Package Width
.40000
Package Height
.30000
Package Weight
0.025
