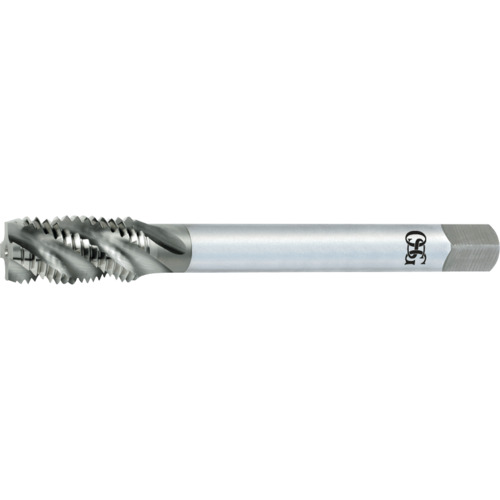

M22x2.5 4Fl 2 High Speed Steel Spiral Flute Tap-Bright
Spiral Flute Tap; M22 × 2.5 mm ; 115 mm OAL ; 4 FL ; HSS ; Uncoated ; 2 ; Series 123

| Thread Diameter Size (TDZ) | M22 | Thread Tolerance Class (TCTR) | 2 |
| Thread Pitch (TP) | 2.5 mm | Tool Type | Spiral Flute Tap |
| Thread Standard | Metric | Chamfer | 2.5P-3P |
| Overall Length (OAL) | 115 mm | Coating | Uncoated |
| Thread Cutting Part Length (THL) | 55 mm | Flute Type | Spiral |
| Usable Length (LU) | 63 mm | End Shape | Chamfer |
| Connection Diameter Machine Side (DCONMS) | 17 mm | Style | Semi-Bottoming |
| Flute Count (NOF) | 4 | Measurement Type | Metric |
| Cutting Edge Material | HSS | Series/List # | 123 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Length
4.60000
Package Width
1.10000
Package Height
1.00000
Package Weight
0.405
