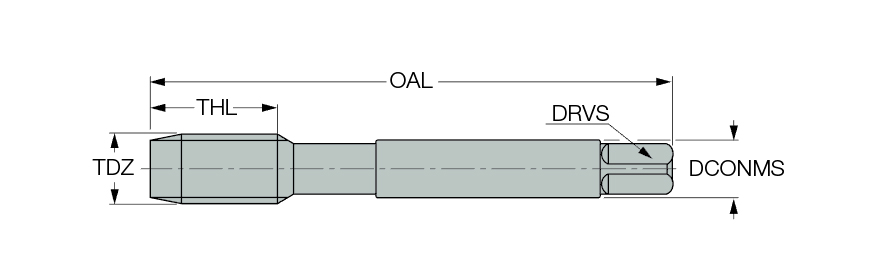

| Thread Diameter Size (TDZ) | M8 | Flute Type | Spiral |
| Thread Pitch (TP) | 1 mm | Style | DIN 374 |
| Thread Standard | THFT | | fmax | 3 |
| Overall Length (OAL) | 90 mm | Measurement Type | Metric |
| Thread Cutting Part Length (THL) | 10 mm | Grade | HETI |
| Connection Diameter Machine Side (DCONMS) | 6 mm | d max | M8mm |
| Flute Count (NOF) | 3 | ToolTypeName | Machine Blind Hole Taps |
| Flute Helix Angle (FHA) | 40 Degrees | L125 | 90mm |
| Cutting Edge Material | HSS | Thread Form Type (THFT) | M60 |
| Thread Tolerance Class (TCTR) | D6 | Series/List # | 299 |
| Standard | DIN 374 | Application | | Deep Hole with Short Thread | Taps for Deep Blind Hole | Taps for Short Blind Hole | |
| Tool Type | Machine Blind Hole Taps | Body Material | HSS |
| Chamfer | 2.5P-3P | Drive Size (DRVS) | 4.9 mm |
| Coating | TiN | Thread Size | M8 × 1 |
Product Features
| Family Description | DIN 13 HSS spiral flute machine taps - metric fine threads , for a wide range of materials. | Country of Origin | S.Korea |
Shipping Info
Package Weight
0.048
