I2S0016T003RGP 1/64X1/8X1/32X1-1/2

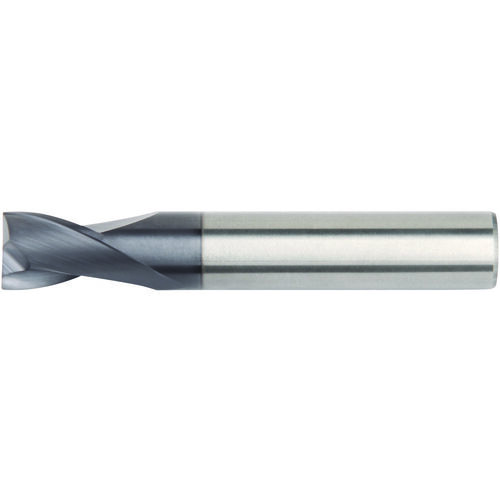

SQ End Mill; 1/64″ Dia. × 1/32″ LOC × 1/8″ Shank Dia. × 1-1/2″ OAL ; 2 FL ; Carbide ; AlTiN
Additional Tariff Surcharge of 8.5 %
| Cutting Diameter (DC) | 1/64″ | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | End Shape | Square |
| Depth of Cut Maximum (APMX) | 1/32″ | Applicable Material | | Stainless Steel | |
| Overall Length (OAL) | 1-1/2″ | Tool Type | Center Cut|Single-End |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Coating | AlTiN | Style | 82-02 SEM Side and Center |
| Flute Count (NOF) | 2 | Decimal Equivalent | 0.0156″ |
| Flute Helix Angle (FHA) | 30 Degrees|CW |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
0.044
