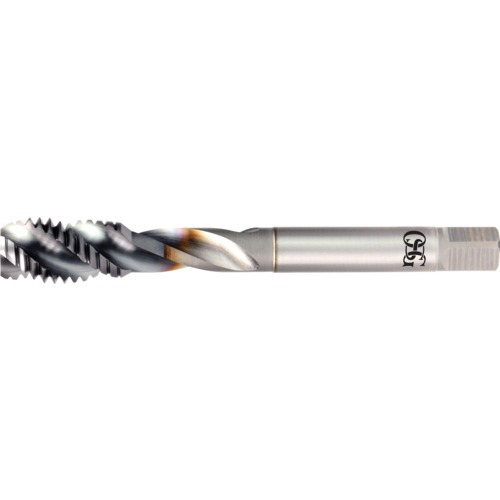

M10X0.75 D4 3FL SP FL A-TAP TICN
Spiral Flute Tap; M10 × 0.75 mm ; 90 mm OAL ; 3 FL ; HSS-PM ; Vanadium ; D4 ; Series 16500
| Thread Diameter Size (TDZ) | M10 | Cutting Edge Material | HSS-PM |
| Thread Pitch (TP) | 0.75 mm | Thread Tolerance Class (TCTR) | D4 |
| Thread Standard | Metric | Tool Type | High Performance Tap |
| Overall Length (OAL) | 90 mm | Chamfer | 2.5P |
| Thread Cutting Part Length (THL) | 10 mm | Coating | Vanadium |
| Usable Length (LU) | 35 mm | Flute Type | Spiral |
| Connection Diameter Machine Side (DCONMS) | 9.67 mm | Measurement Type | Metric |
| Flute Count (NOF) | 3 | Series/List # | 16500 |
| Flute Helix Angle (FHA) | Variable |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Length
4.50000
Package Width
.60000
Package Height
.55000
Package Weight
0.1
