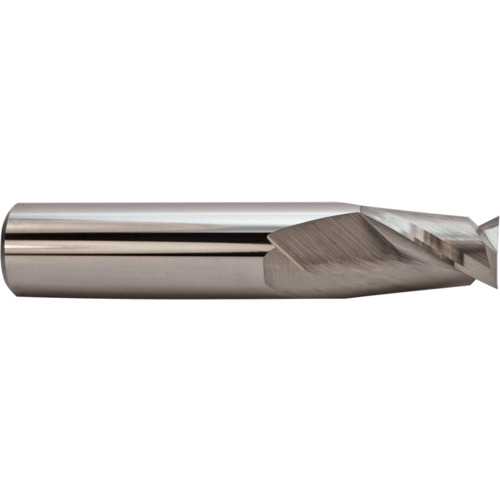

1/4 TuffCut GP, Stub Length, 2 Fl, ALtima Coated, Center Cutting End Mill Alternate Manufacture # 56448
SQ End Mill; 1/4″ Dia. × 1/2″ LOC × 1/4″ Shank Dia. × 2″ OAL ; 2 FL ; Carbide ; Altima
| Cutting Diameter (DC) | 1/4″ | Coating | AlTiN |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Flute Count (NOF) | 2 |
| Depth of Cut Maximum (APMX) | 1/2″ | Tool Type | Center Cut|Single-End |
| Overall Length (OAL) | 2″ | Length Group | Stub |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.25″ |
Product Features
| Family Description | Alternate Manufacture # 56448 | Country of Origin | USA |
| Remarks | •2 Flute End Mill •Center Cutting •Stub Length •30 Degree Helix •Straight Shank •Designed for aggressive milling of most materials with reduced deflection and improved tool life and overall economy •ALtima® Coated |
Shipping Info
Package Length
2.15000
Package Width
.25000
Package Weight
.046
