M12X1.0 D5 3FL SP FL A-TAP V

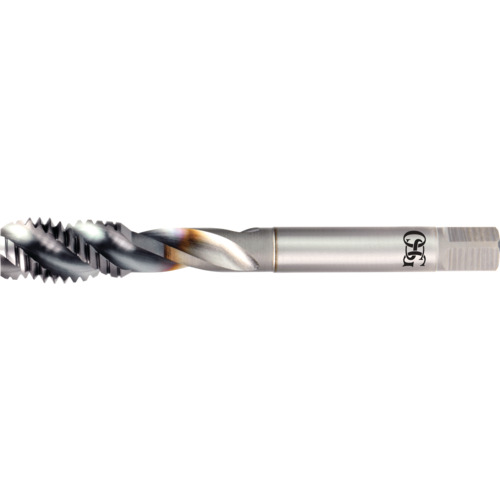

Spiral Flute Tap; M12 × 1 mm ; 100 mm OAL ; 3 FL ; HSS-PM ; Vanadium ; D5 ; Series 16500
| Thread Diameter Size (TDZ) | M12 | Cutting Edge Material | HSS-PM |
| Thread Pitch (TP) | 1 mm | Thread Tolerance Class (TCTR) | D5 |
| Thread Standard | Metric | Tool Type | High Performance Tap |
| Overall Length (OAL) | 100 mm | Chamfer | 1.5P |
| Thread Cutting Part Length (THL) | 12 mm | Coating | Vanadium |
| Usable Length (LU) | 49.1 mm | Flute Type | Spiral |
| Connection Diameter Machine Side (DCONMS) | 9.32 mm | Measurement Type | Metric |
| Flute Count (NOF) | 3 | Series/List # | 16500 |
| Flute Helix Angle (FHA) | Variable |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Length
4.95000
Package Width
.70000
Package Height
.65000
Package Weight
0.13
