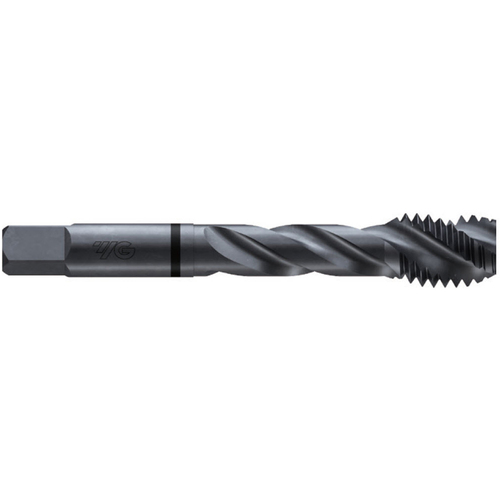

Spiral Flute Tap; 9/16″ - 12 ; 3.59″ OAL ; 3 FL ; HSS-EX ; Oxide ; H3 ; Series TCB-S
| Thread Diameter Size (TDZ) | 9/16″ | Tool Type | Combo Tap |
| Threads per Inch (TPI) | 12 | Chamfer | 2P - 3P |
| Thread Standard | UNC | Coating | Oxide |
| Overall Length (OAL) | 3.59″ | Shank Type | Square |
| Thread Cutting Part Length (THL) | 0.709″ | End Shape | Modified Bottoming |
| Usable Length (LU) | 2.067″ | Coolant Supply Property (CSP) | External |
| Connection Diameter Machine Side (DCONMS) | 0.429″ | Length Group | 2.5xD |
| Flute Count (NOF) | 3 | Square Size | 0.322″ |
| Flute Helix Angle (FHA) | 45 Degrees | Measurement Type | Inch |
| Cutting Edge Material | HSS-EX | Tapping Prehole Diameter (Pre-hole) | 0.4867″ |
| Thread Tolerance Class (TCTR) | H3 | Series/List # | TCB-S |
| Special Feature | Green Ring | Thread Size | 9/16″ - 12 |
| Standard | 302A |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
3.875
Package Width
0.75
Package Height
0.75
Package Weight
0.1315
