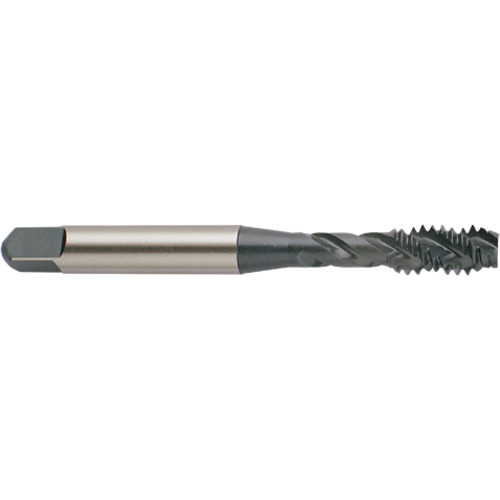

Spiral Flute Tap; M16 × 1.5 mm ; 100 mm OAL ; 3 FL ; HSSE-V3 ; TiCN ; D6 ; Series E8
| Thread Diameter Size (TDZ) | M16 | Tool Type | Spiral Flute Tap |
| Thread Pitch (TP) | 1.5 mm | Chamfer | 2P-3P |
| Thread Standard | MF | Coating | TiCN |
| Overall Length (OAL) | 100 mm | Shank Type | Square |
| Thread Cutting Part Length (THL) | 14 mm | End Shape | Modified Bottoming |
| Usable Length (LU) | 56.01 mm | Length Group | 2.5xD |
| Connection Diameter Machine Side (DCONMS) | 12.19 mm | Square Size | 9.14 mm |
| Flute Count (NOF) | 3 | Measurement Type | Metric |
| Flute Helix Angle (FHA) | 45 Degrees | Tapping Prehole Diameter (Pre-hole) | 14.636 mm |
| Cutting Edge Material | HSSE-V3 | Series/List # | E8 |
| Thread Tolerance Class (TCTR) | D6 | Thread Size | M16 × 1.5 mm |
| Standard | DIN/ANSI |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
4.625
Package Width
0.875
Package Height
0.875
Package Weight
0.178
