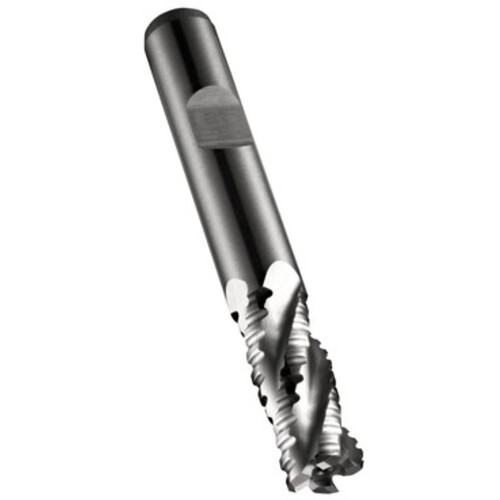

18.00 MM Dormer HSS-E Bright DIN 1835 B Shank Roughing End Mill NF DIN 844 K E-code # C40018.0
SQ End Mill; 18 mm Dia. × 32 mm LOC × 16 mm Shank Dia. × 92 mm OAL ; 4 FL ; HSSCo ; Uncoated ; Series C428
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 18 mm | Applicable Material | | Steel | Cast Iron | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Application | Shank Cutter Roughing |
| Depth of Cut Maximum (APMX) | 32 mm | Head Length (LH) | 32 mm |
| Overall Length (OAL) | 92 mm | Neck Length (LN) | 43.5 mm |
| Cutting Edge Material | HSSCo | Length Group | Short|Stub |
| Coating | Uncoated | Shank Standard | DIN 1835 B |
| Flute Count (NOF) | 4 | Body Material | HSS-E (cobalt high speed steel) Material |
| Flute Helix Angle (FHA) | 30 Degrees | Decimal Equivalent | 0.7087″ |
| Shank Type | Weldon | Series/List # | C428 |
| Usable Length (LU) | 43.5 mm |
Product Features
| Family Description | E-code # C40018.0 | Country of Origin | Poland |
Shipping Info
Package Weight
4.83
