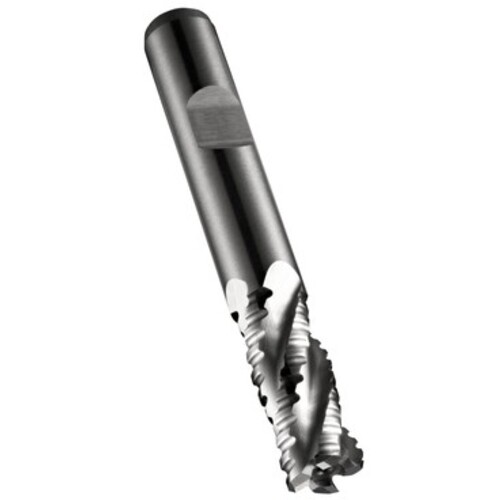

8.00 MM Dormer HSS-E Bright DIN 1835 B Shank Roughing End Mill NF DIN 844 K E-code # C4008.0
SQ End Mill; 8 mm Dia. × 19 mm LOC × 10 mm Shank Dia. × 69 mm OAL ; 4 FL ; HSSCo ; Uncoated ; Series C400
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 8 mm | Applicable Material | | Steel | Cast Iron | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Application | Shank Cutter Roughing |
| Depth of Cut Maximum (APMX) | 19 mm | Head Length (LH) | 19 mm |
| Overall Length (OAL) | 69 mm | Length Group | Short|Stub |
| Cutting Edge Material | HSSCo | Shank Standard | DIN 1835 B |
| Coating | Uncoated | Body Material | HSS-E (cobalt high speed steel) Material |
| Flute Count (NOF) | 4 | Decimal Equivalent | 0.315″ |
| Flute Helix Angle (FHA) | 30 Degrees | Series/List # | C400 |
| Shank Type | Weldon |
Product Features
| Family Description | E-code # C4008.0 | Country of Origin | Poland |
Shipping Info
Package Weight
1.4
