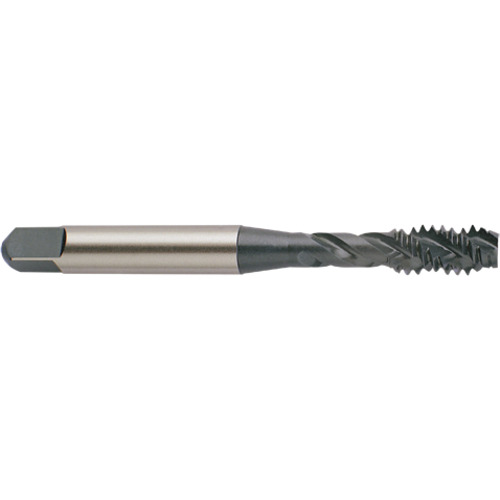

Spiral Flute Tap; 7/8″ - 14 ; 4.69″ OAL ; 4 FL ; HSS-V ; Oxide ; H4 ; Series F4
| Thread Diameter Size (TDZ) | 7/8″ | Chamfer | 1.5P-2P |
| Threads per Inch (TPI) | 14 | Coating | Oxide |
| Thread Standard | UNF | Shank Type | Square |
| Overall Length (OAL) | 4.69″ | Flute Type | Spiral Flute |
| Thread Cutting Part Length (THL) | 0.709″ | End Shape | Bottoming |
| Usable Length (LU) | 2.815″ | Coolant Supply Property (CSP) | External |
| Connection Diameter Machine Side (DCONMS) | 0.697″ | Length Group | 2.5xD |
| Flute Count (NOF) | 4 | Square Size | 0.523″ |
| Flute Helix Angle (FHA) | 50 Degrees | Measurement Type | Inch |
| Cutting Edge Material | HSS-V | Tapping Prehole Diameter (Pre-hole) | 0.8101″ |
| Thread Tolerance Class (TCTR) | H4 | Series/List # | F4 |
| Standard | 302A | Thread Size | 7/8″ - 14 |
| Tool Type | General Purpose |
Product Features
| Country of Origin | S.Korea |
