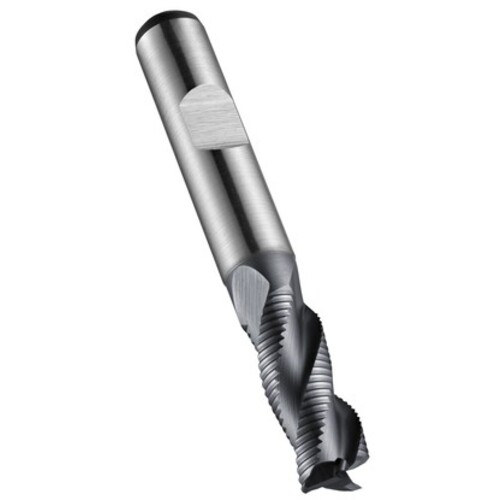

7.00 MM Dormer HSS-E-PM ALCRONA DIN 1835 B Shank Roughing End Mill HRA DIN 844 K E-code # C9227.0
SQ End Mill; 7 mm Dia. × 16 mm LOC × 10 mm Shank Dia. × 66 mm OAL ; 3 FL ; HSSCo-PM ; AlCrN ; Series C922
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 7 mm | Applicable Material | | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Application | Shank Cutter Roughing |
| Depth of Cut Maximum (APMX) | 16 mm | Head Length (LH) | 16 mm |
| Overall Length (OAL) | 66 mm | Length Group | Short|Stub |
| Cutting Edge Material | HSSCo-PM | Shank Standard | DIN 1835 B |
| Coating | AlCrN | Body Material | HSS-E-PM Material |
| Flute Count (NOF) | 3 | Decimal Equivalent | 0.2756″ |
| Flute Helix Angle (FHA) | 35 Degrees | Series/List # | C922 |
| Shank Type | Weldon |
Product Features
| Family Description | E-code # C9227.0 | Country of Origin | Poland |
Shipping Info
Package Weight
1.26
