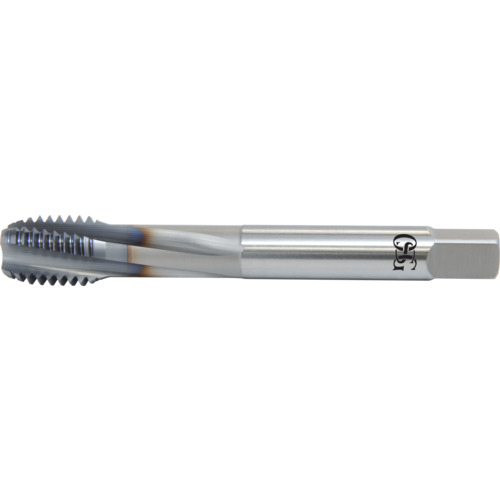

1/4-28 H4 3RX VC10TI TAP-TICN
Spiral Flute Tap; 1/4″ - 28 ; 80 mm OAL ; 3 FL ; HSS-PM ; Vanadium ; H4 ; Series 317TI
| Thread Diameter Size (TDZ) | 1/4″ | Cutting Edge Material | HSS-PM |
| Threads per Inch (TPI) | 28 | Thread Tolerance Class (TCTR) | H4 |
| Thread Standard | UNF | Tool Type | High Performance Tap |
| Overall Length (OAL) | 80 mm | Chamfer | 2.5P-3P |
| Usable Length (LU) | 1″ | Coating | Vanadium |
| Connection Diameter Machine Side (DCONMS) | 0.255″ | Measurement Type | Inch |
| Flute Count (NOF) | 3 | Series/List # | 317TI |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Length
3.60000
Package Width
.40000
Package Height
.35000
Package Weight
.0400
