1-8 H6 4RX VC10 TAP-TICN

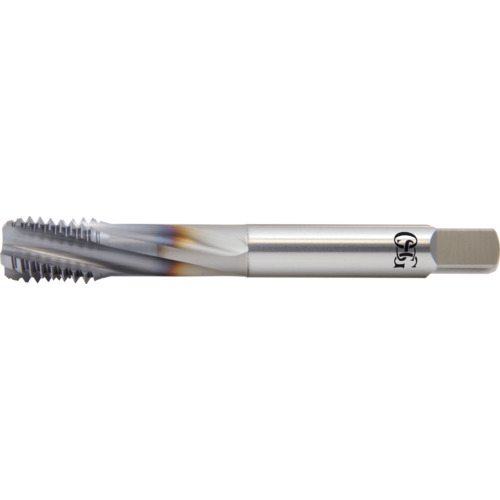

Spiral Flute Tap; 1″ - 8 ; 160 mm OAL ; 4 FL ; HSS-PM ; Vanadium ; H6 ; Series 317
| Thread Diameter Size (TDZ) | 1″ | Flute Helix Angle (FHA) | 15 Degrees |
| Threads per Inch (TPI) | 8 | Cutting Edge Material | HSS-PM |
| Thread Standard | UNC | Thread Tolerance Class (TCTR) | H6 |
| Overall Length (OAL) | 160 mm | Tool Type | High Performance Tap |
| Thread Cutting Part Length (THL) | 1″ | Chamfer | 2.5P-3P |
| Usable Length (LU) | 3.012″ | Coating | Vanadium |
| Connection Diameter Machine Side (DCONMS) | 0.8″ | Measurement Type | Inch |
| Flute Count (NOF) | 4 | Series/List # | 317 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Length
6.40000
Package Width
1.30000
Package Height
1.15000
Package Weight
.7300
