3/4-16 H5 4RX VC10 TAP-TICN

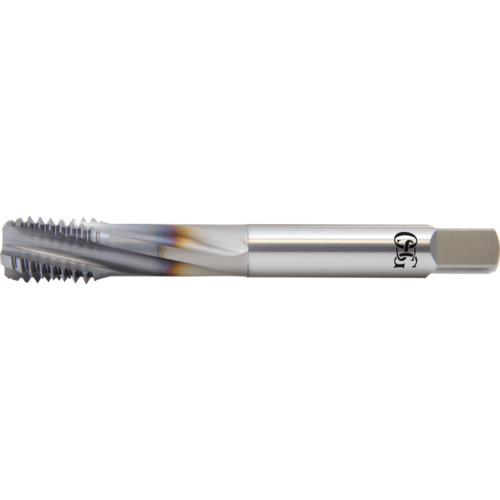

Spiral Flute Tap; 3/4″ - 16 ; 110 mm OAL ; 4 FL ; HSS-PM ; Vanadium ; H5 ; Series 317
| Thread Diameter Size (TDZ) | 3/4″ | Cutting Edge Material | HSS-PM |
| Threads per Inch (TPI) | 16 | Thread Tolerance Class (TCTR) | H5 |
| Thread Standard | UNF | Tool Type | High Performance Tap |
| Overall Length (OAL) | 110 mm | Chamfer | 2.5P-3P |
| Usable Length (LU) | 2.433″ | Coating | Vanadium |
| Connection Diameter Machine Side (DCONMS) | 0.59″ | Measurement Type | Inch |
| Flute Count (NOF) | 4 | Series/List # | 317 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Length
4.45000
Package Width
1.00000
Package Height
.90000
Package Weight
.2700
