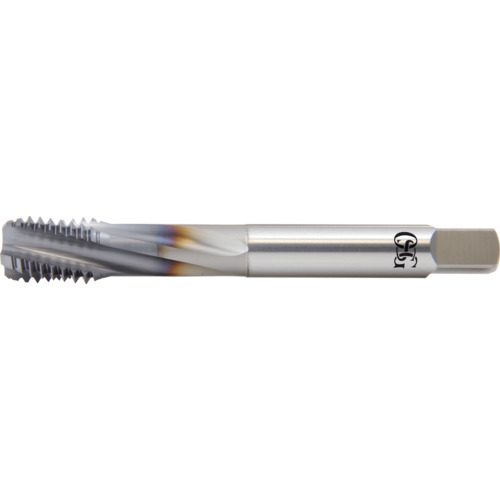

1/2-13 H3 3RX VC10 TAP-TICN
Spiral Flute Tap; 1/2″ - 13 ; 110 mm OAL ; 3 FL ; HSS-PM ; Vanadium ; H3 ; Series 317
| Thread Diameter Size (TDZ) | 1/2″ | Cutting Edge Material | HSS-PM |
| Threads per Inch (TPI) | 13 | Thread Tolerance Class (TCTR) | H3 |
| Thread Standard | UNC | Tool Type | High Performance Tap |
| Overall Length (OAL) | 110 mm | Chamfer | 2.5P-3P |
| Usable Length (LU) | 1.933″ | Coating | Vanadium |
| Connection Diameter Machine Side (DCONMS) | 0.367″ | Measurement Type | Inch |
| Flute Count (NOF) | 3 | Series/List # | 317 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Length
5.00000
Package Width
.70000
Package Height
.70000
Package Weight
.1200
