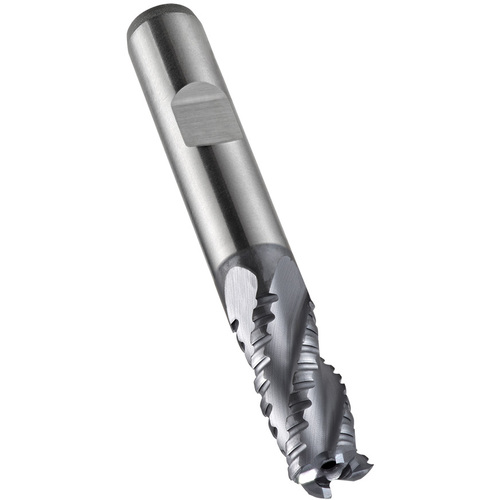

6.00 MM Dormer HSS-E TiCN DIN 1835 B Shank Roughing End Mill NF DIN 844 K E-code # C4136.0
SQ End Mill; 6 mm Dia. × 13 mm LOC × 6 mm Shank Dia. × 57 mm OAL ; 4 FL ; HSSCo ; TiCN ; Series C413
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 6 mm | Applicable Material | | Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Application | Shank Cutter Roughing |
| Depth of Cut Maximum (APMX) | 13 mm | Head Length (LH) | 13 mm |
| Overall Length (OAL) | 57 mm | Length Group | Short|Stub |
| Cutting Edge Material | HSSCo | Shank Standard | DIN 1835 B |
| Coating | TiCN | Body Material | HSS-E (cobalt high speed steel) Material |
| Flute Count (NOF) | 4 | Decimal Equivalent | 0.2362″ |
| Flute Helix Angle (FHA) | 30 Degrees | Series/List # | C413 |
| Shank Type | Weldon |
Product Features
| Family Description | E-code # C4136.0 | Country of Origin | Poland |
Shipping Info
Package Weight
0.466
