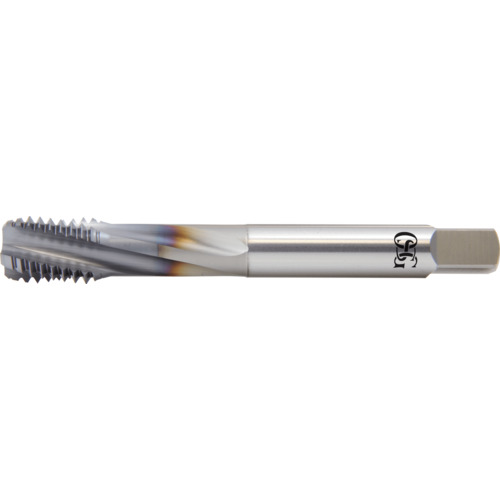

5/16-18 H3 3RX VC10 TAP-TICN
Spiral Flute Tap; 5/16″ - 18 ; 90 mm OAL ; 3 FL ; HSS-PM ; Vanadium ; H3 ; Series 317
| Thread Diameter Size (TDZ) | 5/16″ | Cutting Edge Material | HSS-PM |
| Threads per Inch (TPI) | 18 | Thread Tolerance Class (TCTR) | H3 |
| Thread Standard | UNC | Tool Type | High Performance Tap |
| Overall Length (OAL) | 90 mm | Chamfer | 2.5P-3P |
| Usable Length (LU) | 1.378″ | Coating | Vanadium |
| Connection Diameter Machine Side (DCONMS) | 0.318″ | Measurement Type | Inch |
| Flute Count (NOF) | 3 | Series/List # | 317 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Length
4.45000
Package Width
.50000
Package Height
.45000
Package Weight
0.065
