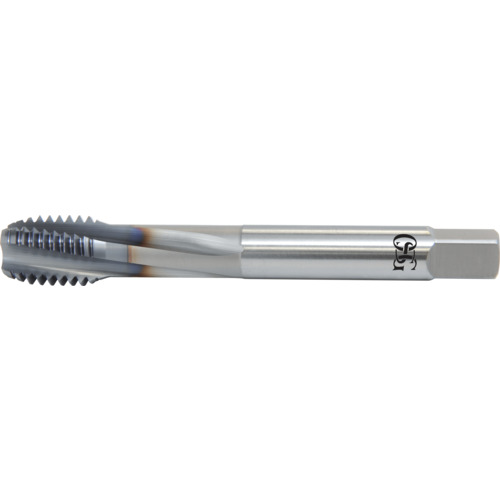

M22 × 1.5 D6 3RX VC10TI TICN
Spiral Flute Tap; M22 × 1.5 mm ; 125 mm OAL ; 4 FL ; HSS-PM ; Vanadium ; D6 ; Series 348TI
| Thread Diameter Size (TDZ) | M22 | Cutting Edge Material | HSS-PM |
| Thread Pitch (TP) | 1.5 mm | Thread Tolerance Class (TCTR) | D6 |
| Thread Standard | Metric | Tool Type | High Performance Tap |
| Overall Length (OAL) | 125 mm | Chamfer | 2.5P-3P |
| Usable Length (LU) | 67 mm | Coating | Vanadium |
| Connection Diameter Machine Side (DCONMS) | 17.7 mm | Measurement Type | Metric |
| Flute Count (NOF) | 4 | Series/List # | 348TI |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Length
4.95000
Package Width
1.10000
Package Height
1.00000
Package Weight
.4600
