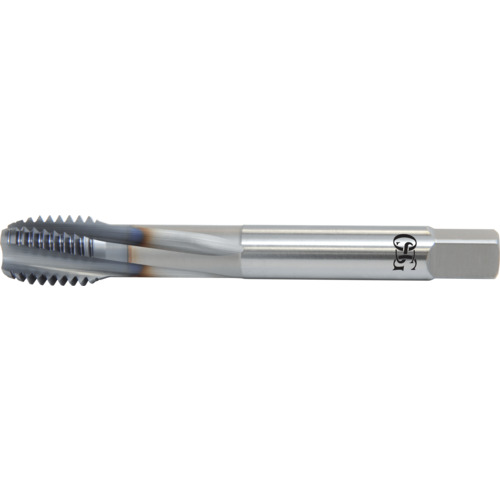

1-12 H4 4RX VC10TI TAP-TICN
Spiral Flute Tap; 1″ - 12 ; 140 mm OAL ; 4 FL ; HSS-PM ; Vanadium ; H4 ; Series 317TI
| Thread Diameter Size (TDZ) | 1″ | Cutting Edge Material | HSS-PM |
| Threads per Inch (TPI) | 12 | Thread Tolerance Class (TCTR) | H4 |
| Thread Standard | UNC | Tool Type | High Performance Tap |
| Overall Length (OAL) | 140 mm | Chamfer | 2.5P-3P |
| Usable Length (LU) | 3.012″ | Coating | Vanadium |
| Connection Diameter Machine Side (DCONMS) | 0.8″ | Measurement Type | Inch |
| Flute Count (NOF) | 4 | Series/List # | 317TI |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Length
5.60000
Package Width
1.25000
Package Height
1.20000
Package Weight
.6900
