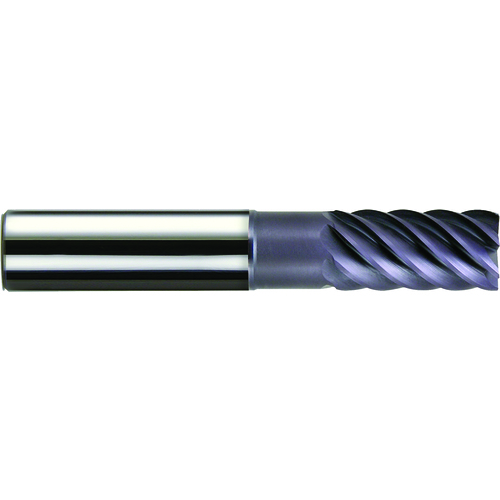

14 mm × 14 mm × 32 mm × 89 mm 7 Flute Single End Carbide HPE High Performance End Mill Center Cutting End Mill-nACo Series/List #5998M
SQ End Mill; 14 mm Dia. × 32 mm LOC × 14 mm Shank Dia. × 89 mm OAL ; 7 FL ; Carbide ; AlTiSiN ; Series 5998M
| Cutting Diameter (DC) | 14 mm | Usable Length (LU) | 32 mm |
| Connection Diameter Machine Side (DCONMS) | 14 mm | Applicable Material | | Stainless Steel | Cast Iron | Super-Alloys / Titanium | |
| Depth of Cut Maximum (APMX) | 32 mm | Tool Type | Single End |
| Overall Length (OAL) | 89 mm | Length Group | Extended |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Coating | AlTiSiN | Style | HPE Ultra-High Performance End Mills |
| Flute Count (NOF) | 7 | Decimal Equivalent | 0.5512″ |
| Flute Helix Angle (FHA) | Variable | Measurement Type | Metric |
| Shank Type | Round | Series/List # | 5998M |
| End Shape | Square |
Product Features
| Country of Origin | USA |
Shipping Info
Package Length
4.75000
Package Width
.50000
Package Weight
0.423
