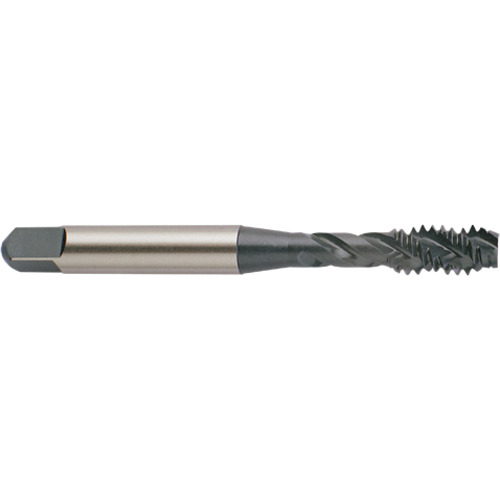

Spiral Flute Tap; M10 × 1.5 mm ; 74.68 mm OAL ; 3 FL ; HSS-V ; TICN ; D6 ; Series G5
Spiral Flute Tap; M10 × 1.5 mm ; 74.68 mm OAL ; 3 FL ; HSS-V ; TiCN ; D6 ; Series G5
| Thread Diameter Size (TDZ) | M10 | Chamfer | 1.5P-2P |
| Thread Pitch (TP) | 1.5 mm | Coating | TiCN |
| Thread Standard | M | Shank Type | Square |
| Overall Length (OAL) | 74.68 mm | Flute Type | Spiral Flute |
| Thread Cutting Part Length (THL) | 13 mm | End Shape | Bottoming |
| Usable Length (LU) | 31.8 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 9.68 mm | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 3 | Length Group | 2.5xD |
| Flute Helix Angle (FHA) | 50 Degrees | Square Size | 7.26 mm |
| Cutting Edge Material | HSS-V | Measurement Type | Metric |
| Thread Tolerance Class (TCTR) | D6 | Tapping Prehole Diameter (Pre-hole) | 8.636 mm |
| Standard | 302A | Series/List # | G5 |
| Tool Type | General Purpose | Thread Size | M10 × 1.5 mm |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
3.75
Package Width
0.75
Package Height
0.625
Package Weight
0
