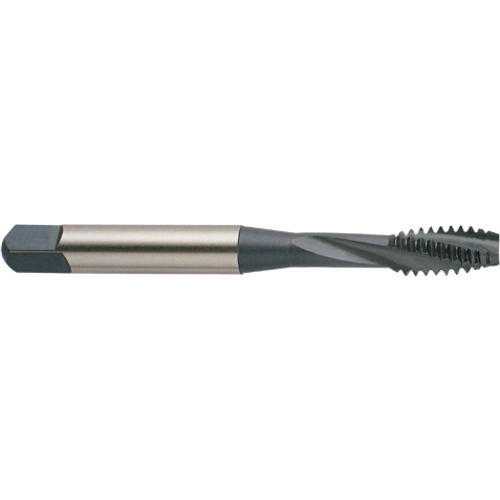

Spiral Flute Tap; 3/8″ - 24 ; 2.94″ OAL ; 3 FL ; P-HSS ; Hardslick ; H4 ; Series H8
| Thread Diameter Size (TDZ) | 3/8″ | Tool Type | Spiral Flute Tap |
| Threads per Inch (TPI) | 24 | Chamfer | 2P-3P |
| Thread Standard | UNF | Coating | HL |
| Overall Length (OAL) | 2.94″ | Shank Type | Square |
| Thread Cutting Part Length (THL) | 0.394″ | End Shape | Modified Bottoming |
| Usable Length (LU) | 1.252″ | Coolant Supply Property (CSP) | External |
| Connection Diameter Machine Side (DCONMS) | 0.381″ | Length Group | 2.5xD |
| Flute Count (NOF) | 3 | Square Size | 0.286″ |
| Flute Helix Angle (FHA) | 15 Degrees | Measurement Type | Inch |
| Cutting Edge Material | HSS | Tapping Prehole Diameter (Pre-hole) | 0.3371″ |
| Thread Tolerance Class (TCTR) | H4 | Series/List # | H8 |
| Standard | 302A | Thread Size | 3/8″ - 24 |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
3.875
Package Width
0.75
Package Height
0.625
Package Weight
0.08
