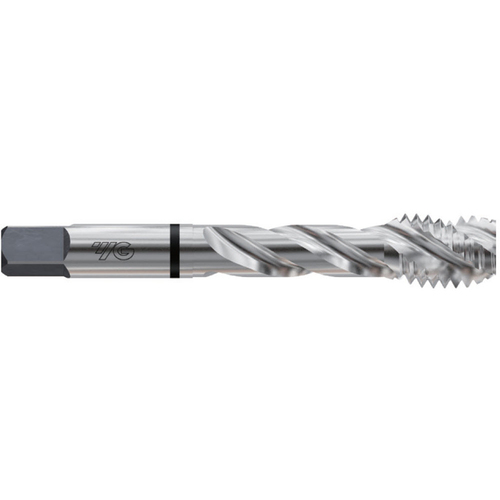

Spiral Flute Tap; M12 × 1.25 mm ; 85.85 mm OAL ; 3 FL ; HSS-EX ; Bright ; D5 ; Series T5
| Thread Diameter Size (TDZ) | M12 | Tool Type | Combo Tap |
| Thread Pitch (TP) | 1.25 mm | Chamfer | 2P - 3P |
| Thread Standard | MF | Coating | Uncoated |
| Overall Length (OAL) | 85.85 mm | Shank Type | Square |
| Thread Cutting Part Length (THL) | 14 mm | End Shape | Modified Bottoming |
| Usable Length (LU) | 52.5 mm | Coolant Supply Property (CSP) | External |
| Connection Diameter Machine Side (DCONMS) | 9.32 mm | Length Group | 2.5xD |
| Flute Count (NOF) | 3 | Square Size | 6.99 mm |
| Flute Helix Angle (FHA) | 40 Degrees | Measurement Type | Metric |
| Cutting Edge Material | HSS-EX | Tapping Prehole Diameter (Pre-hole) | 10.86 mm |
| Thread Tolerance Class (TCTR) | D5 | Series/List # | T5 |
| Special Feature | Black Ring | Thread Size | M12 × 1.25 mm |
| Standard | 302A |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
5.125
Package Width
0.875
Package Height
0.75
Package Weight
0.098
