1-8 H4 4FX VA3 TAP-TICN

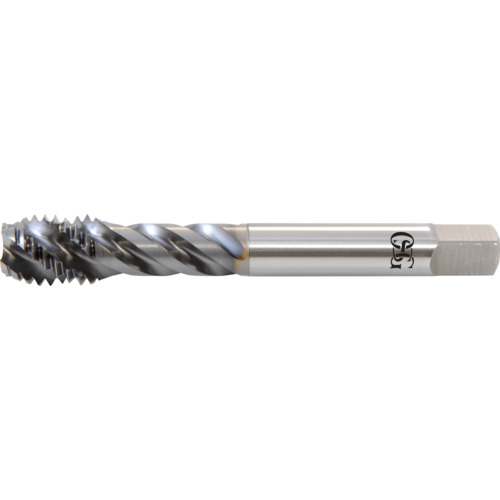

Spiral Flute Tap; 1″ - 8 ; 160 mm OAL ; 4 FL ; HSSE-V3 ; Vanadium ; H4 ; Series 307

| Thread Diameter Size (TDZ) | 1″ | Flute Helix Angle (FHA) | 45 Degrees |
| Threads per Inch (TPI) | 8 | Cutting Edge Material | HSSE-V3 |
| Thread Standard | UNC | Thread Tolerance Class (TCTR) | H4 |
| Overall Length (OAL) | 160 mm | Tool Type | High Performance Tap |
| Thread Cutting Part Length (THL) | 1″ | Chamfer | 2.5P-3P |
| Usable Length (LU) | 2.091″ | Coating | Vanadium |
| Connection Diameter Machine Side (DCONMS) | 0.8″ | Measurement Type | Inch |
| Flute Count (NOF) | 4 | Series/List # | 307 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Length
6.35000
Package Width
1.25000
Package Height
1.20000
Package Weight
.7300
